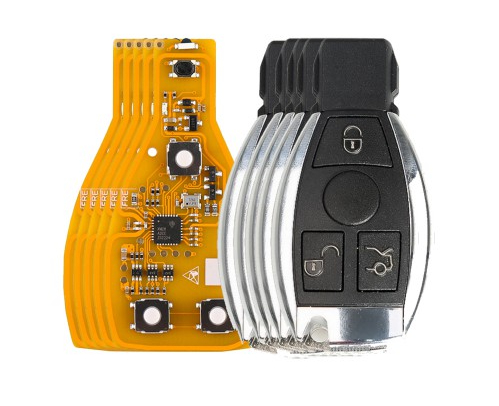

VVDI BE Key Pro Mercedes ( NO BONUS )

Xhorse BE smart key:Version 4.1, super stable
Frequency changeable 315Mhz/433MHz
Reusable – you can reset it
Programmed by all kinds of MB key programmer, such as Autel IM608, CGDI and VVDI MB, Key Tool Plus, Digimaster-III ,CKM100, AK500, MBE MB-KEY OBD2, NEC-57 MB-PRO and so on
Can use Mercedes smart key 3 button or 2 button key and it worked lock/unlock/ trunk. Support key shell SA1794 or SA1794-b or SA1794-C
Xhorse brand, superior quality.
Applicable chip models:705 Moto(1997-2000) NEC(2001-2005) NEC(2006-2010) BGA(after 2011)

The ways to reset the frequency:
1) with the PCB SMD resistor. Weld the 1K SMD resistor on the position the arrow points and the frequency is 315MHZ, after remove it will be 433.92MHZ.
2) Change frequency between 315MHz and 433MHz with VVDI MB Tool.

Xhorse VVDI BE Key Pro Features:

More compatibility
New design
High Stability
High reliability
Digital Signature
High quality with a reasonable price
No points will be accumulated

VVDI BE Key Pro improvements:

1. Fix the bug that W164/W639 EIS data doesn’t synchronize the key.
2. Fix the bug that the BE key fails to turn on the ignition after repeat try.
3. Fix the bug of trunk remote open
4. Fix the bug that the BE key only sent RF signal for one time, after update, the RF signal can be sent for two times when press and release the key.
5. Modify the rolling algorithm, fix some errors of BE key.
6. Add pre-roll algorithm: the HASH value can roll ahead.
7. Adopt car-grade quartz crystal, improve infrared communication stability.
8. Boost the infrared signal when you press the button.
9. Support resetting the key frequency between 315MHZ and 433.92 in the way of VVDI MB tool or the PCB SMD resistor
Note: VVDI MB tool has priority over the SMD resistor, which means if you reset the key frequency with VVDI MB tool at first, the SMD resistor won’t work, and you need to use the VVDI MB tool to erase the frequency then use the SMD resistor.
Xhorse VVDI Mercedes BE Supported Models:​
BRAND
MODEL
FROM
TO
NOTE
MERCEDES
A CLASS
2011
2017

MERCEDES
A160
2011
2012
W169
MERCEDES
A170
2011
2012
W169
MERCEDES
A180
2012
2017
W176
MERCEDES
A220
2012
2017
W176
MERCEDES
A250
2012
2017
W176
MERCEDES
ALL MODELS
1997
2015

MERCEDES
B CLASS
2005
2017

MERCEDES
C CLASS
1997
2015

MERCEDES
C160
2001
2006
W203
MERCEDES
C180
1997
2015
W202 & W203 & W204
MERCEDES
C200
1997
2015
W202 & W203 & W204
MERCEDES
C220
1997
2006
W202 & W203
MERCEDES
C230
1997
2015
W202 & W203 & W204
MERCEDES
C240
1997
2006
W202 & W203
MERCEDES
C250
1997
2015
W202 & W204
MERCEDES
C280
1997
2006
W202 & W203
MERCEDES
C300
2008
2015
W204
MERCEDES
C320
2001
2006
W203
MERCEDES
CL CLASS
2001
2017

MERCEDES
CLA CLASS
2013
2017

MERCEDES
CLS CLASS
2004
2017

MERCEDES
CLS220
2014
2017
W218
MERCEDES
CLS250
2014
2017
W218
MERCEDES
CLS280
2008
2010
W219
MERCEDES
CLS300
2004
2006
W219
MERCEDES
CLS320
2005
2010
W219
MERCEDES
CLS350
2006
2014
W218 & W219
MERCEDES
CLS400
2014
2017
W218
MERCEDES
CLS500
2004
2017
W218 & W219
MERCEDES
E CLASS
1998
2015

MERCEDES
E200
1998
2016
W210 & W211 & W207 & W212
MERCEDES
E220
2010
2016
W210 & W211 & W207 & W212
MERCEDES
E230
1998
2009
W210 & W211
MERCEDES
E240
1998
2009
W210 & W211
MERCEDES
E300
1997
2016
W210 & W211 & W207 & W212
MERCEDES
E320
1997
2005
W210 & W211
MERCEDES
E350
2003
2016
W211 & W207 & W212
MERCEDES
E400
2004
2016
W211 & W207 & W212
MERCEDES
E420
1997
2009
W210 & W211
MERCEDES
E500
2002
2016
W211 & W207
MERCEDES
E550
2003
2016
W211 & W212
MERCEDES
G CLASS
2002
2018

MERCEDES
G320
2006
2018
W463
MERCEDES
G500
2006
2018
W463
MERCEDES
G55
2005
2018
W463
MERCEDES
G63
2002
2018
W463
MERCEDES
GL CLASS
2006
2018

MERCEDES
GL350
2012
2018
W166
MERCEDES
GL400
2014
2018
W166
MERCEDES
GL450
2013
2015
W166
MERCEDES
GL500
2012
2016
W166
MERCEDES
GLA CLASS
2014
2018

MERCEDES
GLA180
2014
2018
W156
MERCEDES
GLA200
2014
2018
W156
MERCEDES
GLA220
2014
2018
W156
MERCEDES
GLA250
2014
2018
W156
MERCEDES
GLK CLASS
2008
2015

MERCEDES
GLK280
2008
2009

MERCEDES
GLK300
2009
2012

MERCEDES
GLK350
2008
2015

MERCEDES
ML CLASS
2005
2018

MERCEDES
ML250
2012
2015
W166
MERCEDES
ML320
2005
2011
W164
MERCEDES
ML350
2012
2015
W166
MERCEDES
ML400
2015
2018
W166
MERCEDES
ML550
2012
2014
W166
MERCEDES
R CLASS
2005
2013

MERCEDES
S CLASS
1998
2013

MERCEDES
S250
2009
2013
W221
MERCEDES
S280
1998
2013
W220 & W221
MERCEDES
S300
2006
2009
W221
MERCEDES
S320
1998
2009
W220 & W221
MERCEDES
S350
2003
2013
W220 & W221
MERCEDES
S400
2000
2013
W220 & W221
MERCEDES
S420
2006
2009
W221
MERCEDES
S450
2009
2010
W221
MERCEDES
S500
1998
2013
W220 & W221
MERCEDES
S550
2006
2013
W221
MERCEDES
S600
2006
2013
W221
MERCEDES
SL CLASS
2002
2018

MERCEDES
SLK CLASS
2004
2017

MERCEDES
VIANO
2004
2017
W639 & W447
MERCEDES
VITO
2004
2017
W639 & W447
XHORSE
ALL MODELS
